How Does an ePTFE Vent Membrane Work? Waterproof and Breathable Technology Explained
Technical Guide | ePTFE Microporous Membrane Technology | Ventrase
An ePTFE vent membrane is an advanced waterproof breathable material that allows air and gas exchange while preventing liquid water and contaminants from entering.
This technology is widely used in chemical packaging, electronics, battery systems and industrial equipment where pressure equalization and environmental protection are required.
Why Does Venting Technology Matter?
Many modern products require protection from external environments while still needing controlled airflow.
Completely sealed containers and enclosures can experience internal pressure changes caused by:
- Temperature fluctuations
- Transportation altitude changes
- Internal gas generation
- Battery charging and operating cycles
Without a reliable venting solution, pressure differences may result in:
- Container deformation
- Seal stress
- Liquid leakage
- Reduced product reliability
Related Technical Guide
Before understanding how ePTFE works, learn the fundamentals of ePTFE vent membrane technology:
What Is an ePTFE Vent Membrane? Complete Guide for Engineers →
What Is ePTFE Vent Membrane Technology?
ePTFE stands for expanded polytetrafluoroethylene.
Through a controlled stretching process, PTFE material develops a unique microporous structure containing millions of microscopic pores.
This structure creates the key performance characteristics of ePTFE:
| Characteristic | Function |
|---|---|
| Microporous Structure | Allows airflow and gas movement |
| Hydrophobic Surface | Blocks liquid water penetration |
| Chemical Resistance | Supports harsh industrial environments |
| Temperature Stability | Maintains performance under temperature changes |
Understanding the Microporous Structure of ePTFE
The most important feature of ePTFE is its microporous structure.
The membrane contains a network of tiny pores that create a balance between airflow and waterproof protection.
How the Microporous Structure Works
- Air molecules can pass through the membrane
- Water droplets are blocked by the hydrophobic structure
- Dust and contaminants are prevented from entering
- Pressure differences can be reduced through gas exchange
Continue Reading
In Part 2, we will explain the waterproof mechanism, breathable principle and pressure equalization process of ePTFE vent membranes.
Waterproof Mechanism of ePTFE Vent Membrane
The waterproof performance of an ePTFE vent membrane comes from the combination of hydrophobic PTFE material properties and a controlled microporous structure.
Although the membrane allows gases to pass through, liquid water cannot easily penetrate because water droplets are much larger than the membrane pores.
Why Can ePTFE Block Water?
| Feature | Function |
|---|---|
| Hydrophobic PTFE Material | Repels water from the membrane surface. |
| Microporous Structure | Creates controlled pathways for gas exchange. |
| Low Surface Energy | Reduces water penetration. |
Breathable Principle: How Air Passes Through ePTFE
Unlike traditional waterproof films, ePTFE membranes are designed to allow continuous gas exchange.
Air molecules and water vapor can move through the interconnected micropores, helping maintain pressure balance inside containers and enclosures.
Gas Exchange Process
- Internal pressure increases
- Air moves through the membrane
- Pressure difference decreases
- System returns to a balanced condition
This breathable function makes ePTFE suitable for applications requiring both protection and ventilation.
How Does ePTFE Achieve Waterproof and Breathable Performance Together?
The unique value of ePTFE is that it solves two normally conflicting requirements:
| Requirement | ePTFE Solution |
|---|---|
| Need air exchange | Micropores allow gas movement. |
| Need water protection | Hydrophobic structure blocks liquid water. |
| Need environmental durability | PTFE provides chemical and temperature resistance. |
This combination makes ePTFE one of the most widely used materials for waterproof breathable membrane applications.
How Does a Pressure Equalization Vent Work?
Pressure equalization is one of the most important functions of an ePTFE vent membrane.
Industrial products often experience pressure changes caused by temperature, altitude, chemical reactions or battery operation.
Without a Pressure Equalization Vent
- Internal pressure increases
- Container walls may deform
- Seals may become stressed
- Leakage risks may increase
With an ePTFE Pressure Equalization Vent
- Air can enter or leave through the membrane
- Pressure differences are reduced
- Container structure remains stable
- Product reliability improves
Why Pressure Equalization Is Important in Industrial Products
Many industries rely on pressure equalization vents to protect sensitive products from environmental changes.
| Application | Pressure Challenge |
|---|---|
| Chemical Containers | Temperature changes may create expansion or vacuum. |
| Battery Systems | Gas generation and thermal cycling require controlled venting. |
| Electronic Enclosures | Outdoor temperature changes may create condensation pressure. |
| Industrial Equipment | Sealed housings need stable internal pressure. |
Related Ventrase Technology
Learn more about waterproof breathable membrane solutions:
Continue Reading
In Part 3, we will explore real industrial applications, including chemical packaging, EV battery systems, electronics and Ventrase vent solutions.
Industrial Applications of ePTFE Vent Membranes
The combination of waterproof protection, breathable performance and pressure equalization makes ePTFE vent membranes suitable for many industrial applications.
From chemical containers to electronic devices and battery systems, engineers use ePTFE vent technology to improve product reliability and safety.

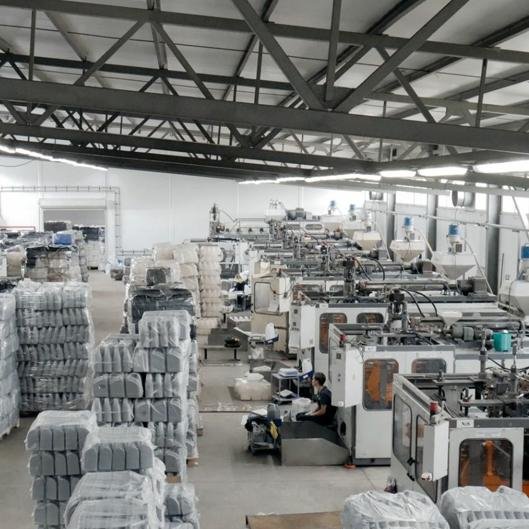

1. Chemical Packaging Vent Applications
Chemical packaging is one of the most common applications for ePTFE pressure equalization vents.
During storage and transportation, chemical containers may experience:
- Temperature changes
- Altitude pressure variations
- Internal vapor generation
- Container expansion and contraction
An ePTFE vent membrane helps maintain stable pressure while preventing liquid leakage.
Typical Chemical Packaging Applications
- Pesticide bottles
- Fertilizer containers
- Lubricant packaging
- Industrial chemical drums
- Cleaning product containers
Reduce container deformation and improve packaging reliability during transportation and storage.
Recommended solution:D38 Drum ePTFE Vent Plug →
2. Electronics Enclosure Vent Applications
Electronic enclosures need protection from moisture, dust and environmental conditions while avoiding pressure stress.
A waterproof breathable vent allows electronic housings to exchange air while maintaining protection against external contaminants.
Common Electronics Applications
- Outdoor electronic equipment
- Industrial control systems
- Sensors and monitoring devices
- LED lighting equipment
- Communication systems
| Challenge | ePTFE Solution |
|---|---|
| Condensation risk | Allows moisture vapor exchange. |
| Pressure changes | Provides continuous pressure equalization. |
| Outdoor exposure | Provides waterproof protection. |
3. Battery System Venting Applications
Battery systems require reliable venting because operation cycles may generate heat and gas pressure.
ePTFE vent membranes help battery enclosures maintain stable pressure while protecting internal components.
Battery Applications Include:
- Electric vehicle battery packs
- Energy storage systems
- Industrial battery modules
- Portable power devices
| Battery Requirement | ePTFE Advantage |
|---|---|
| Gas release management | Controlled airflow path. |
| Water protection | Blocks external moisture. |
| Temperature cycling | Maintains stable vent performance. |
Related application:Battery System Venting Solutions →
4. Industrial Equipment Venting
Industrial machines and outdoor equipment often require sealed housings to protect internal components.
However, completely sealed systems may experience pressure imbalance caused by environmental changes.
Typical Applications:
- Motors and actuators
- Outdoor control cabinets
- Hydraulic equipment
- Industrial sensors

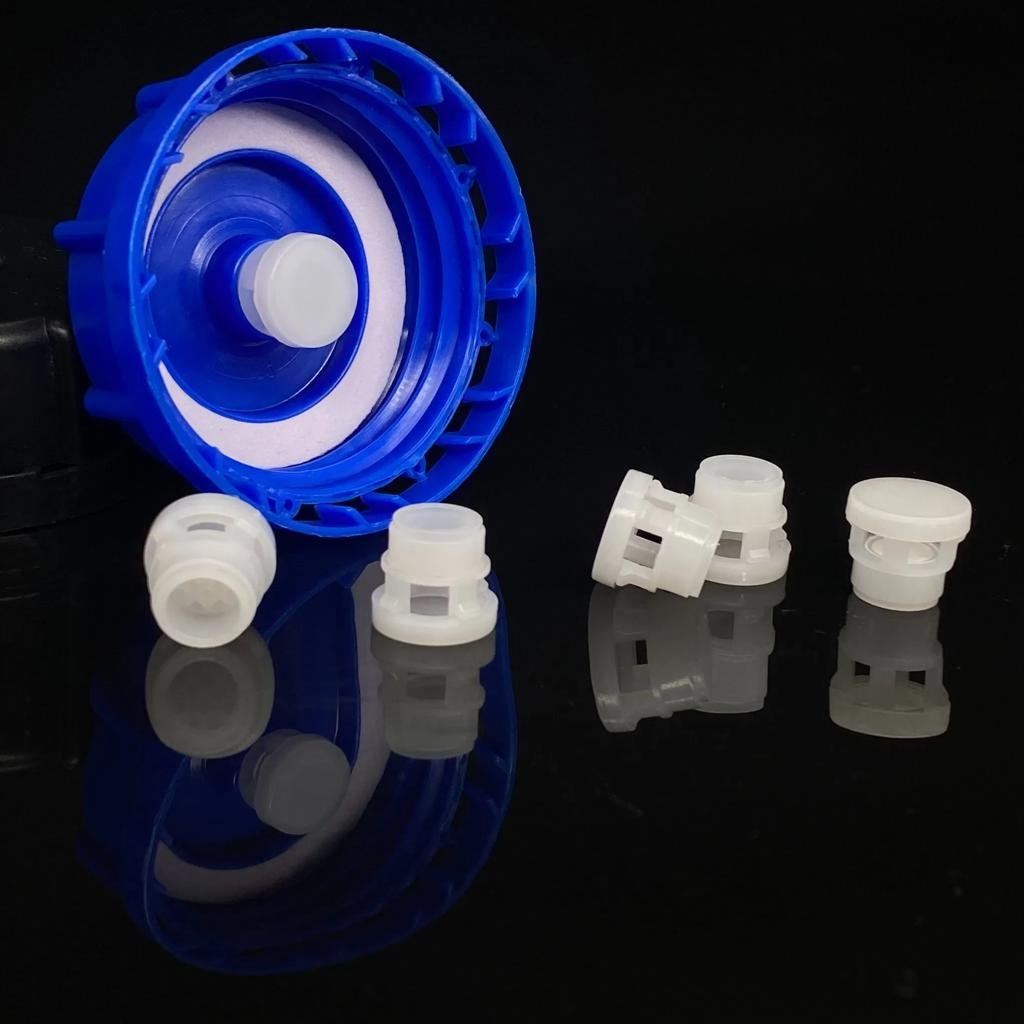

Ventrase ePTFE Vent Solutions
Ventrase provides a complete range of venting solutions designed for different industries and product requirements.
| Solution | Recommended Application |
|---|---|
| D17 Press Fit ePTFE Vent Plug | Compact containers and small enclosure applications |
| D38 Drum ePTFE Vent Plug | Large chemical containers and industrial packaging |
| ePTFE Breathable Membrane | Customized waterproof breathable solutions |
Continue Reading
In Part 4, we will provide the engineering selection guide, Ventrase advantages, FAQ and complete SEO Schema markup.
How to Select the Right ePTFE Vent Membrane
Selecting the correct ePTFE vent membrane requires understanding the operating environment, airflow requirements and protection level of the application.
Engineers should evaluate several key factors before choosing a pressure equalization vent solution.
| Selection Factor | Engineering Consideration |
|---|---|
| Application Environment | Exposure to water, chemicals, dust, humidity and temperature changes. |
| Required Airflow | Determine the amount of gas exchange required for pressure control. |
| Water Protection Level | Select suitable waterproof performance according to application conditions. |
| Chemical Compatibility | Confirm membrane resistance to chemicals and operating fluids. |
| Installation Method | Choose vent plug, vent liner or customized membrane structure. |
Engineering Checklist Before Selecting a Vent Solution
- What is the container or enclosure volume?
- What pressure changes will occur during operation or transportation?
- Will the product be exposed to water, chemicals or outdoor environments?
- What airflow rate is required?
- What temperature range must the vent withstand?
- What installation method is required?
Why Choose Ventrase ePTFE Vent Solutions?
Ventrase develops waterproof breathable membrane and pressure equalization vent solutions for global industrial customers.
Ventrase Advantages
-
Advanced ePTFE Technology
High-performance microporous membrane solutions for demanding applications. -
Wide Industrial Experience
Applications covering chemical packaging, electronics, batteries and industrial equipment. -
Customized OEM Solutions
Support for different sizes, structures and performance requirements. -
Engineering Support
Professional assistance in selecting suitable venting solutions.
Explore Ventrase Venting Products
Ventrase provides a complete range of ePTFE vent solutions for industrial applications.
| Product | Application |
|---|---|
| D17 Press Fit ePTFE Vent Plug | Small and medium containers requiring compact pressure equalization. |
| D38 Drum ePTFE Vent Plug | Large chemical containers and industrial packaging. |
| Waterproof Breathable Membrane | Customized waterproof breathable membrane applications. |
Need a Custom Pressure Equalization Vent Solution?
Ventrase provides ePTFE vent membranes, vent plugs and customized venting solutions for industrial manufacturers.
Our engineering team can help select the right membrane structure, airflow performance and installation method for your application.
Frequently Asked Questions About ePTFE Vent Membranes
How does an ePTFE vent membrane work?
An ePTFE vent membrane uses a microporous structure that allows air and gas exchange while preventing liquid water penetration.
Why is ePTFE both waterproof and breathable?
The hydrophobic PTFE structure blocks water while the micropores allow airflow and vapor transmission.
What is a pressure equalization vent?
A pressure equalization vent allows controlled gas exchange to balance internal and external pressure while protecting the product from contaminants.
Where are ePTFE vent membranes used?
They are commonly used in chemical packaging, battery systems, electronics enclosures, automotive components and industrial equipment.
Can Ventrase provide customized ePTFE solutions?
Yes. Ventrase supports customized vent membranes, vent plugs and OEM solutions based on customer requirements.
